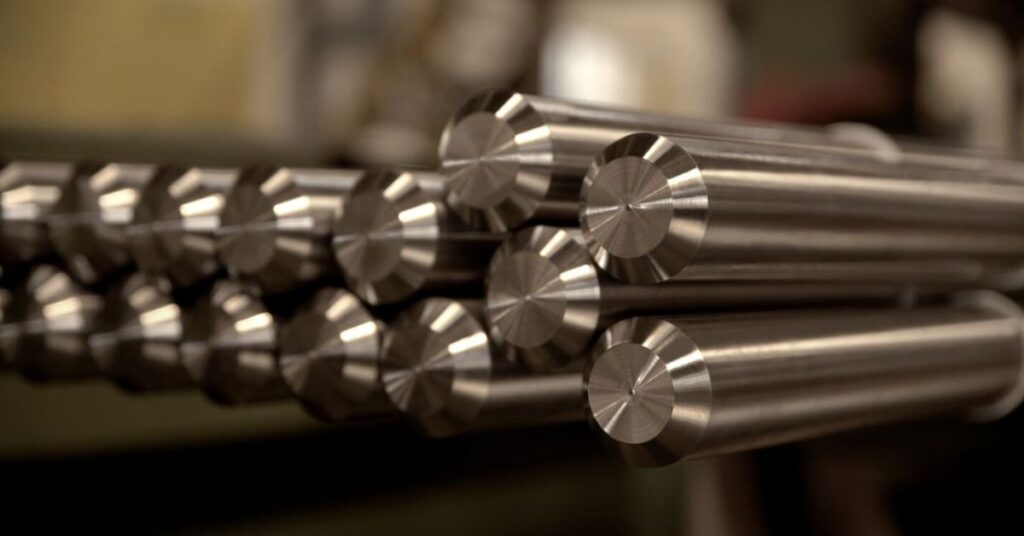

We are specializes in manufacturing Pump Shaft Quality Bars. Pump Shaft Quality Bars.
- They are turned and polished preciously so that they can achieve a form suitable for applications pertaining to rotation and specific CNC Machining
- These bars are best used as free cutting
steel for further processing into
components, shafts etc. - We provide PSQ bars with following
characteristics :
– High level of Straightness
– High level of dimension tolerance
– Maintained RA Value
– Bars without marks and scratches
Product Details
Sizes | 6mm to 25mm |
Size Tolerances | j6, e6, h6, f6, f7, h7, f8, h8, h9, ½ of A484 etc |
Length Tolerance | 1 meter to 6 meters |
Ovality | Half of diameter tolerance |
Heat Treatment | Annealed, Solution Annealed, Quenched & Tempered (QT), Hardened & Tempered (HT), Quenched & Double Tempered (QDT) |
Straightness | 0.25mm per meter max (0.0015” per feet) |
Surface Finish | Ra – 0.2 um / 12 RMS max |
Features:
- Defined diameter
- Uniform structure
- Ultimate strength
- Dynamic toughness
- High-Level straightness
Applications:
- Stainless steel bar manufacturers
- Industrial stainless steel bar manufacturers
- Petrochemical industry
